ULT Mechanical Freezer Monitor with Backup LN2 Injection and Alert Condition Notification
Model CA5000-N Product Information
Key Features:
- More than 48 hours of -60 °C freezer backup with one 180-liter cylinder of LN2.
- Internal maintenance-free battery with charge status indicator providing at least 48 hours of freezer backup after a power outage.
- Digital display of interior ULT freezer chamber temperature.
- Independent user-programmable setpoints for system alarms and LN2 injection times.
- Visible and audible indicators for alarm conditions and system status.
- Programmable delays to minimize unnecessary LN2 injections and nuisance alarms.
- Relay contact output for central alarm systems and automatic notification systems.
- Door safety interlock switch preventing LN2 injection while freezer is being accessed.
- EU Declaration of Conformity.
Product Overview:

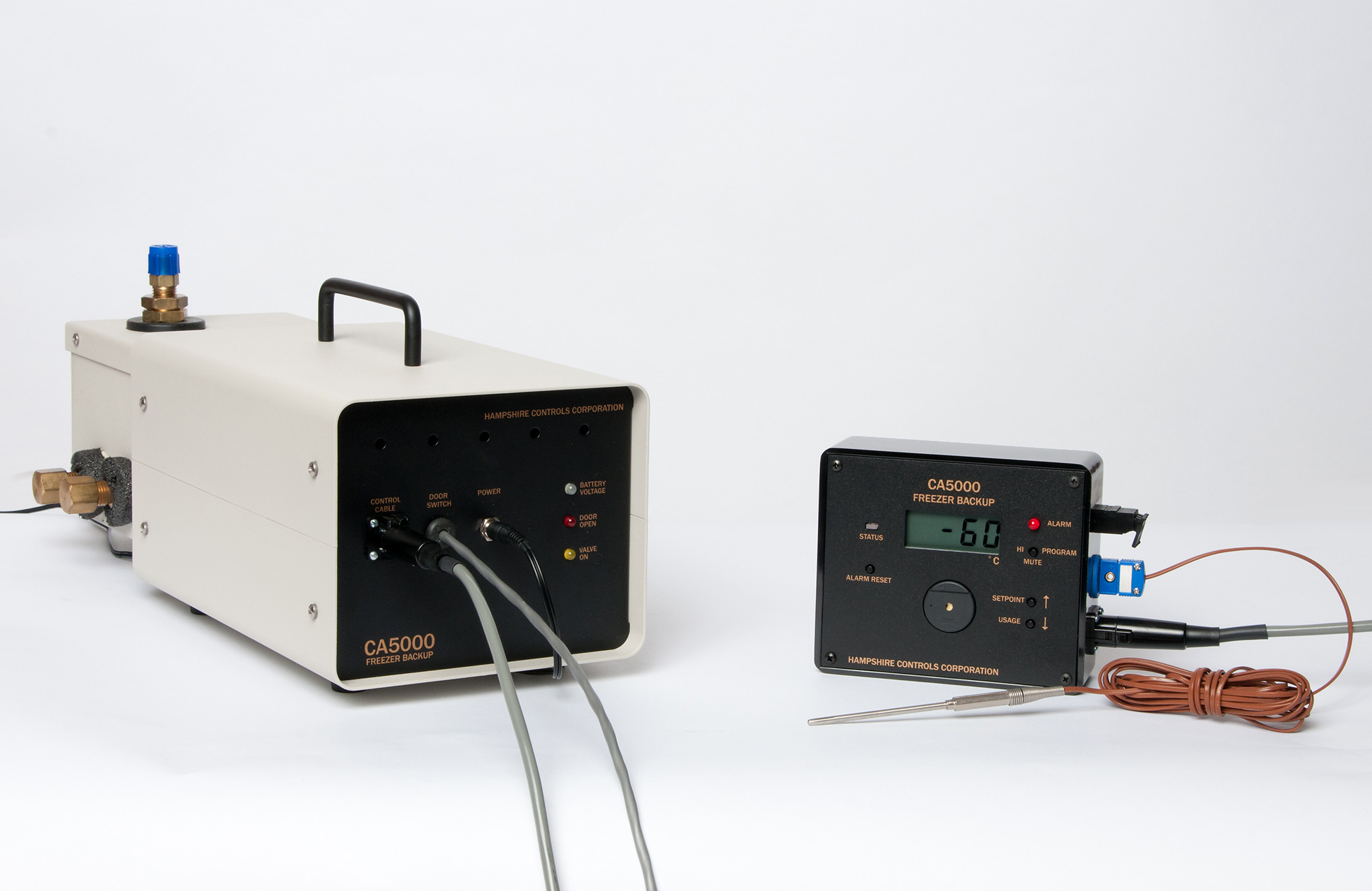

The CA5000-N Liquid Nitrogen Freezer Backup System is a unique combination of a field-proven ultra-reliable alarm system and a liquid nitrogen (LN2) injection system, for safeguarding your precious biological materials and other products stored at ultra-low temperatures (ULT) in mechanical freezers. The system offers user-programmable alarm and control setpoints and alarm delay times, all stored in non-volatile memory..
The customer supplied LN2 is maintained at high pressure, ready to be injected into a failing ULT freezer cabinet. When a power outage or freezer malfunction occurs and the freezer warms above the user-defined setpoint, an alarm sounds along with a flashing red LED. If the freezer continues to warm, then a user-defined quantity of LN2 is injected into the freezer - quickly restoring the temperature below the setpoint.
In addition to providing insurance against power outages and freezer malfunctions, a manual LN2 injection from the CA5000 system will bring a mechanical freezer at room temperature to ultra-low temperatures without having to wait for the typical ULT freezer cooldown period.
NOTE: Click here for our Model CA5000-C if you need controllable C02 back-up injection for your ULT freezer.
The peace of mind and rapid cooling efficiency
of our CA5000-N backup systems is crucial for vaccine and mRNA
vaccine storage, virus and genetic samples, in vitro
fertilization (IVF) samples, biopharmaceuticals, and other
materials that must be stored at ultra-low temperatures.
Our CA5000-N systems are easy to program; including ULT freezer chamber target temperature, alarm delay periods, LN2 injection initiation conditions, and LN2 injection timing. For operational safety, the system includes a door interlock switch that disables LN2 injection when the freezer door is open. The CA5000-N is MADE IN THE USA at our Dover, NH facility.
Note: Hampshire Controls supplies the LN2 injection tubing from the CA5000 to the ULT freezer. Tubing between the LN2 supply and the CA5000-N must be provided by the user.
Related Products:
- AD 2000 auto Dialer: (Model AD 2000) Dials a phone/pager to immediately provide alarm notification whenever a set alarm level is triggered.
- Remote Alarm Delay Module (Model ADM 215).
